ZTE pon ZXA10 C300 gepon/GPON olt Specifications

ZTE pon ZXA10 C300 gepon/GPON olt

Quick Details

Place of Origin:	China (Mainland)	Brand Name:	ZTE	Model Number:	ZXA10 C300
Dimensions:	19/21-inch and 10-U high	gpon:	support	DC suppply power:	-48 VDC
Uplink port:	GE/10GE/E1/T1 STM-1	Max onts:	14336(19-inch)/16384(21-inch)	adsl:	support
vdsl:	support	manage:	CLI/Telnet/SSH/SNMP

Specifications

ZTE pon ZXA10 C300 gepon/GPON olt
10-U high and 19-inch
GPON/EPON/GEPON OLT
GE/10GE STM-1/PTP interface

  ZTE pon  ZXA10 C300 gepon/GPON olt

Overview
ZXA10 C300 is aconvergent optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands. ZXA10 C300 won the InfoVision Green Broadband Award at Broadband World Forum Europe (BBWF Europe) in 2010.
Features

• Large capacity, large density and high performance

Satisfy the demands of evolution, deployment and flattening of networks. Provide series of scenarios with large splitter ratio and long distance.

• Smooth evolution and high protection of networks investment

Unified platform support the EPON/GPON/10G PON/NG PON2/P2P, satisfy the development of full services

• Multi-Play service access platform

Excellent service performances and VLAN/ multicast/ QoS capability; support high bandwidth access of voice/ image/ video; satisfying the demands of network establishing in the time of fiber in and copper out

• Carrier-Class reliability

Support key board redundancy, end-to-end management and maintenance, hot swap and optical link supervisory, etc.

• Green and energy-effective:

Support multiple energy saving mode, lead-free. Every of process are green in product research, production and transportation.

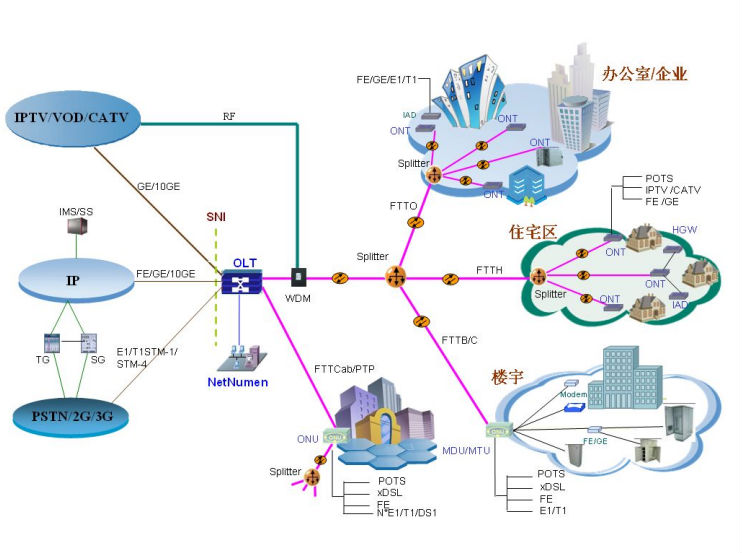

   ZTE FTTH/FTTB/FTTC GPON  ZXA10 C300 gepon/GPON olt

ZTE ZXA10 C300 GPON OLT configuration:
2 power cards, the model is PRWG.

Double uplink cards, the model is GUFQ, including one module for each board.

One universal interface board, CICG, there are 11 Ethernet ports on it.

Exchange control boards, 2 pieces, the model is SCXM.1 piece 8-port GPON card, the model number is GTGO, including 8 modules.

Two black power cables; an RJ-45 first turn 9-pin RS-232 female network cable; one RJ-45 cable;
